Junction Box ECO CB

−25°C

+40°C

Features

Wall mounted
Non-flammable
Silicone- and halogene free

Product Datasheet

Approvals

Send request

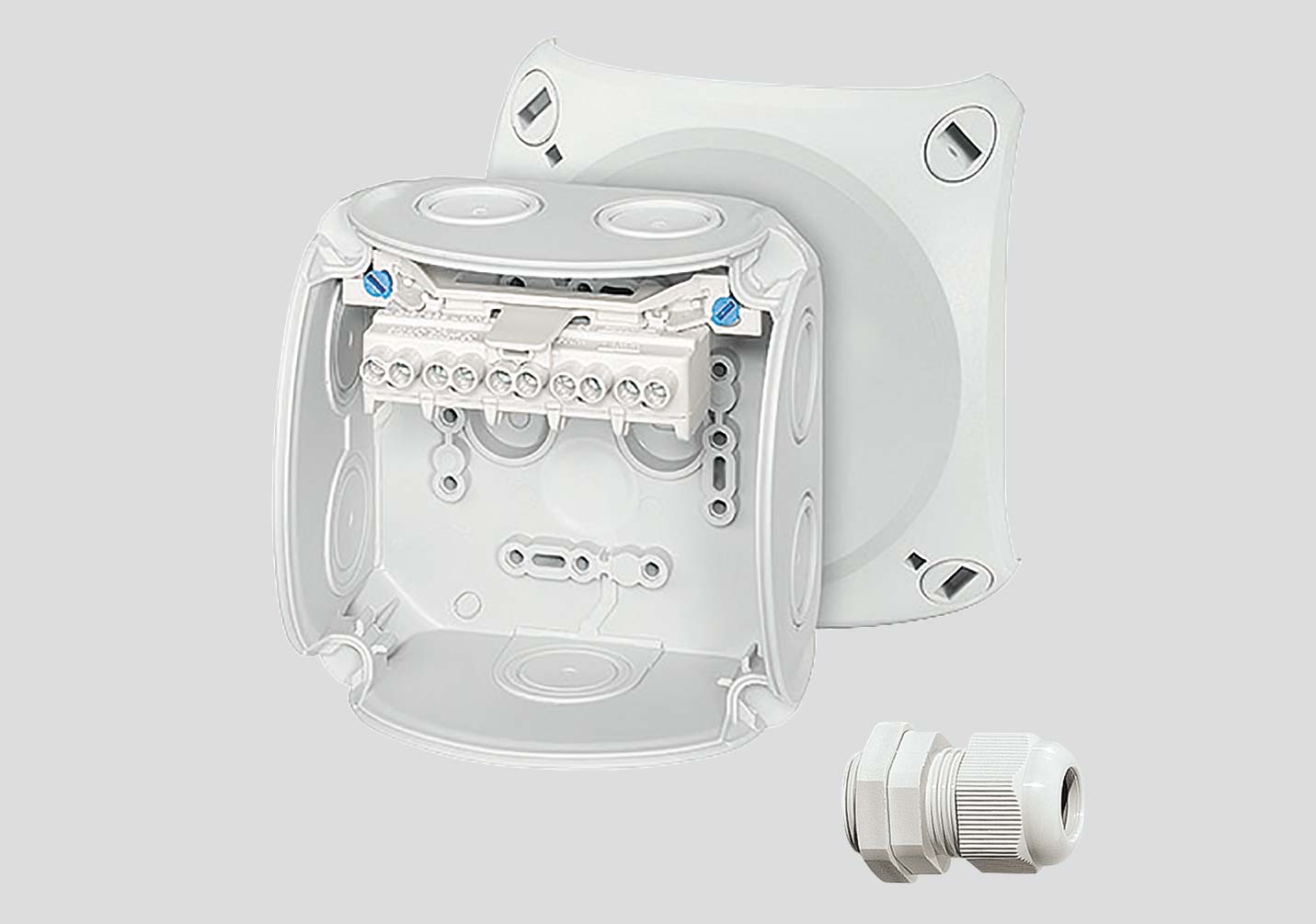

The Junction box ECO CB is suitable to connect 1 or 2 self-regulating heating cables to a mains power supply. It can be used for indoor as well as protected outdoor applications.

Wall mounted
Non-flammable
Silicone- and halogene free
Quick and easy installation

Technical Data

Degree of protection	IP66
Ambient temperature range	−25 ... +40 °C
Rated current	32 A
Rated voltage	230 VAC
Dimensions	104×104×70 mm
Weight	0,158 kg
Material	Polypropylene
Color	Gray
