Stahlmann fittings have a special design based on a self-locking ring of increased strength. We provide a wide range of original fittings to ensure leak-free installation of Stahlmann corrugated tube systems. The fittings are made of high quality brass CW617N.
The peculiarity of the fittings is their individual design, which allows you to install the fitting on the pipe in a matter of seconds.
To install the fitting, simply insert the pipe into it and tighten the nut. It is not necessary to disassemble the fitting.
Stahlmann fittings received all the necessary certificates. Due to the high-quality materials used in the production of Stahlmann fittings, they have properties that provide a high degree of dust and moisture protection, temperature resistance (high and low temperatures), resistance to sparks, rodents, fungus, mold.
Water fitting size | ||||||
Index | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 |
Body and nut material | Brass CW617N | |||||
Housing and nut coating material* | Nickel | - | ||||
Thread material, inch | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 |
Operating temperatures, °С | -50....+110 | |||||
Working pressure, mpa | 1,5 | 1,2 | 1 | 1 | 0,6 | 0,4 |
Maximum short-term temperature, °С | 150 | |||||
Life time | 30 years | |||||
Guarantee | 2 years |
Index | Gas fitting size | |||||
DN15 | DN20 | DN25 | ||||
Body and nut material | Brass CW617n | |||||
Thread material, inch | 1/2 | 3/4 | 1 | |||
Operating temperatures, °С | -20....+110 | |||||
Working pressure, mpa | 1,5 | 1,2 | 1 | |||
Life time | 30 years | |||||
Guarantee | 2 years | |||||
Fitting type | Name | Size | Photo |

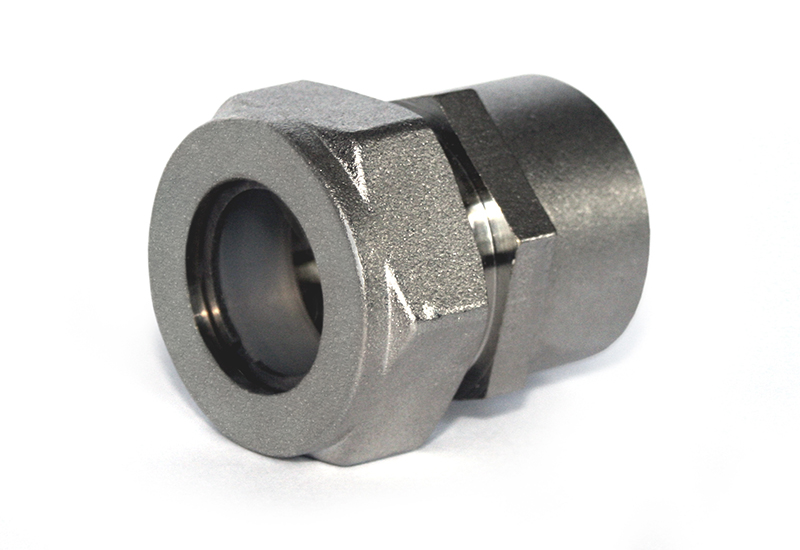

Fittings | Fitting Stahlmann (F) |
15х1/2 EF
20х3/4 EF 25х1 EF 32х1 1/4 EF 40х1 1/2 EF 50х2 EF | ![]() |
Reducing fitting Stahlmann (F) |
15х3/4 EF
20х1/2 EF | ||
Fitting Stahlmann (М) |
15х1/2 EF
20х3/4 EF 25х1 EF 32х1 1/4 EF 40х1 1/2 EF 50х2 EF | ![]() | |
Reducing fitting Stahlmann (M) |
15х3/4 EF
20х1/2 EF 25х3/4 EF | ||
Fittings NP | Fittings (F) NP |
15х1/2 EF
20х3/4 EF | ![]() |
Fittings (М) NP |
15х1/2 EF
20х3/4 EF | ![]() | |
Unions | Union Stahlmann |
15х15 EF
20х20 EF 25х25 EF 32х32 EF 40х40 EF 50х50 EF | ![]() |
Reducing unions | Reducing union Stahlmann |
20х15 EF
25х15 EF 25х20 EF | ![]() |
Fittings gas | Fitting Stahlmann (F) gas |
15х1/2
20х3/4 25х1 | ![]() |
Fitting Stahlmann (M) gas |
15х1/2
20х3/4 25х1 | ![]() | |
Tee fittings | Tee fitting Stahlmann (F) |
15х1/2х15 EF
20х3/4х20 EF 25х1х25 EF 32х1 1/4х32 EF | ![]() |
Tee fitting Stahlmann (M) |
15х1/2х15 EF
| ![]() | |
Equal Tee fittings | Equal Tee fitting Stahlmann |
15х15х15 EF
20х20х20 EF 25х25х25 EF | ![]() |
Reducing Tee fittings | Reducing Tee fitting Stahlmann |
20х15х20 EF
25х15х25 EF 25х20х25 EF 32х20х32 EF 32х25х32 EF | ![]() |
Elbow fittings (Wall Plate) | Elbow fitting (Wall Plate) Stahlmann (F) |
15 х 1/2 EF
20х3/4 EF | ![]() |
Elbow fittings | Elbow fitting Stahlmann (F) |
15х1/2 EF
20х3/4 EF 25х1 EF | ![]() |
Elbow fitting Stahlmann (M) | 15х1/2 EF | ![]() | |
Union nuts | Union nut Stahlmann |
1/2
3/4 | ![]() |
Silicone gaskets for Union nuts | Silicone gasket for Union nuts Stahlmann |
1/2
3/4 | ![]() |
High temperature gaskets | High temperature gasket Stahlmann |
DN15
DN20 DN25 DN32 | ![]() |
Silicone gaskets | Silicone gasket Stahlmann |
DN15
DN20 DN25 DN32 | ![]() |
Locking rings | Locking brass ring Stahlmann |
DN15
DN20 DN25 DN32 | ![]() |
Ball valve | Ball valve Stahlmann (M) | 15х1/2 NP EF | ![]() |
Ball valve Stahlmann (F) | 15х1/2 NP EF | ![]() |
