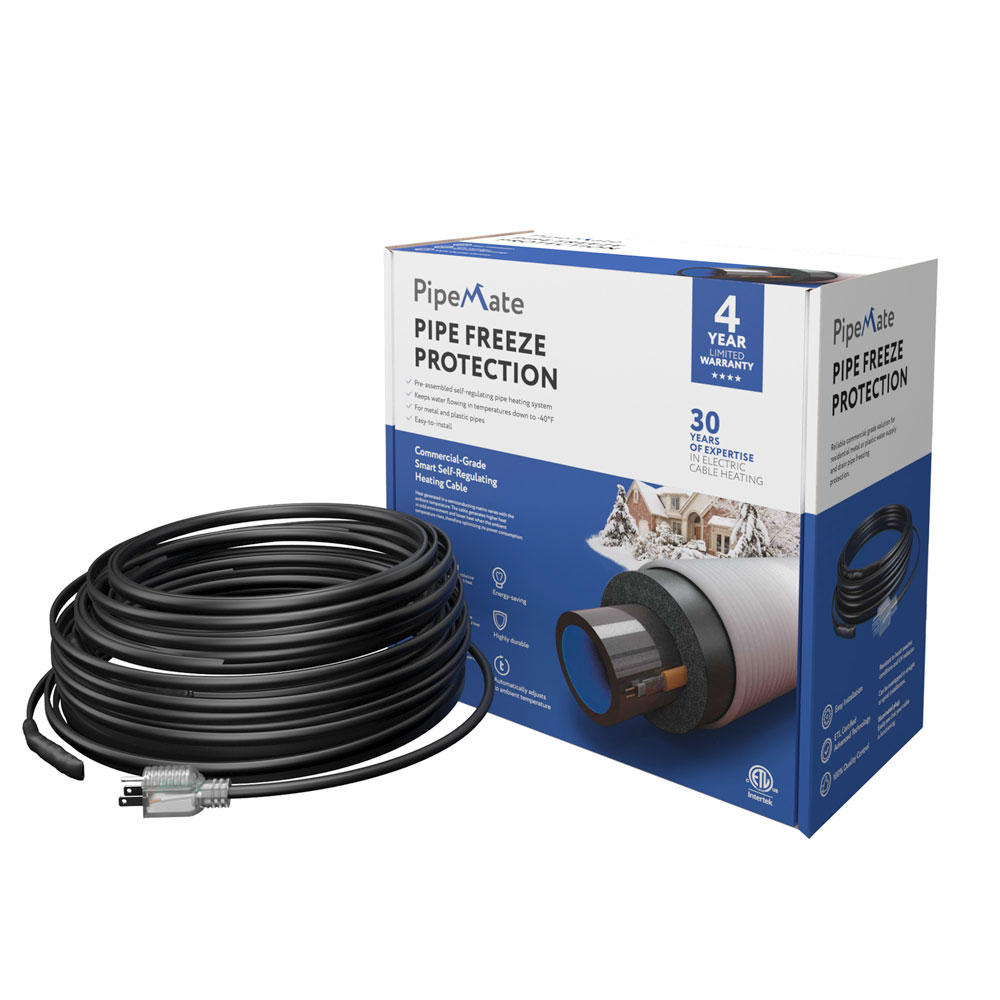

Pipe Freeze Protection

Pipe Freeze Protection

Features

  • Weather-resistant design of PipeMate cable prevents metal and plastic pipes, sprinkler systems, and sewer drains from freezing.
  • Pre-assembled for easy installation.
  • Includes an Illuminated plug indicating that your cable is functioning.
Instruction

In cold weather it is necessary to ensure that pipes, sprinkler systems, and sewer drains do not freeze. PipeMate system is based on self-regulating heating cables — the best solution for these applications because it regulates power output depending on the ambient temperature, making it more energy-efficient. PipeMate freeze protection system can be applied to pipes (PVC and metal), ducts and water lines.

PipeMate self-regulating heating cable is designed to prevent liquids in metal and plastic pipes from freezing. Parallel construction makes it easier to install because it can be cut to length at any point on the pipe. It can be overlapped without overheating the cable.

  • Weather-resistant design of PipeMate cable prevents metal and plastic pipes, sprinkler systems, and sewer drains from freezing.
  • Pre-assembled for easy installation.
  • Includes an Illuminated plug indicating that your cable is functioning.
  • Based on self-regulating heating cable that decreases heat output during warm weather, increasing energy savings.
  • The cable consists of a durable PVC inner insulation and a continuous ground braid.
  • Can be overlapped in straight or spiral installations.
Technical Data
Rated Voltage 110-120 V
Bus Wires 20 AWG
Braiding Tinned copper
Outer Jacket TPE
Output at 50 °F (10 °C) 5 W/ft
Bending Radius 25 mm
Power Cord Length 3 ft, copper, 18 AWG,
plug with LED-indication
Maximum Exposure Temperature 185 °F (85 °C)
