Self-Regulating Heating Cable BTX
Features
- 15, 30, 45, 60, 75 or 100 W/m
- For extra-high temperatures
- Steam purging possible
Application Areas
Temperature maintenance or freeze protection of pipelines and vessels in non-hazardous and ex-hazardous areas
Approvals
BTX is an industrial grade self-regulating heating cable that can be used for temperature maintenance or freeze protection of pipelines and vessels. It can be used in non-hazardous and ex-hazardous areas.
The power output adjusts automatically in response to the ambient temperature.
Because of its self-regulating characteristics it will not overheat even when the cable is overlapped. This guarantees maximum safety and reliability.
The installation of BTX heating cable is quick and simple and requires no special skills or tools. Because of its parallel construction the heating cable can be fitted on site to exact length without any complicated design calculations.
- 15, 30, 45, 60, 75 or 100 W/m
- For extra-high temperatures
- Steam purging possible
- Ex-approved solution
- Self-regulating, automatically adjusts power output in response to ambient temperature
- Fluoropolymer overjacket
- Easy to install
- Can be cut to required length on site without any complicated design calculations
- Will not overheat even when overlapped
- Can be used in explosive environments without temperature limiter
- Full range of accessories available
- UV and chemical resistant
| Rated voltage | 230 VAC |
|---|---|
| Maximum continuous operating temperature (trace heater energized) | 250 °C |
| Maximum continuous exposure temperature (trace heater de-energized) | 200 °C |
| Ambient temperature range | −60 ... +55 °C |
| Minimum installation temperature: Fluoropolymer overjacket | −40 °C |
| Minimum bending radius | 35 mm |
| Maximum braiding resistance | 10 Ohm/km |
| Conductor cross-section | 1.25 mm2 |
| Dimension: 15BTX – 75BTX 100BTX |
12.10×5.40 mm 14.40×5.60 mm |
| Weight: 15BTX – 75BTX 100BTX |
146 kg/km 195 kg/km |

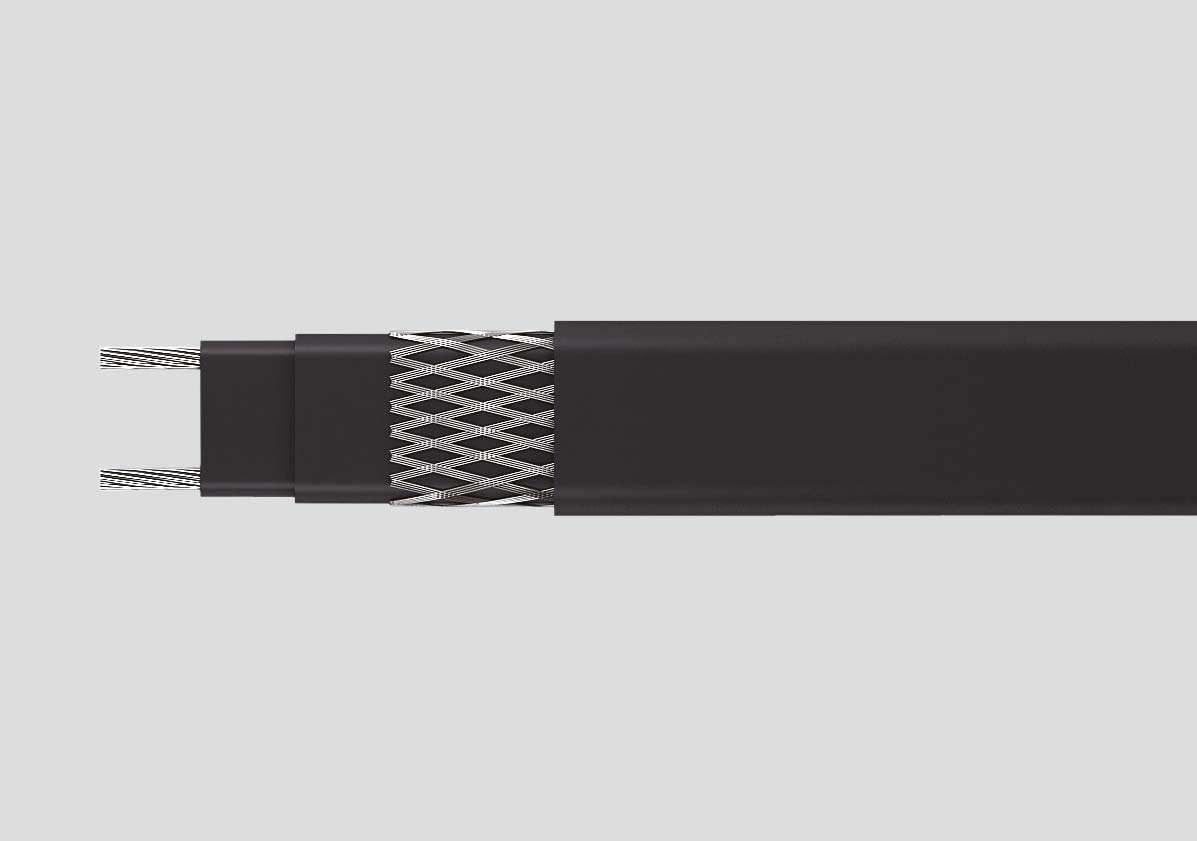

- 1.25 mm2 nickel-plated copper conductors
- Semi-conductive self-regulating matrix
- Matrix insulation
- Tinned copper braid
- Overjacket (Fluoropolymer)
