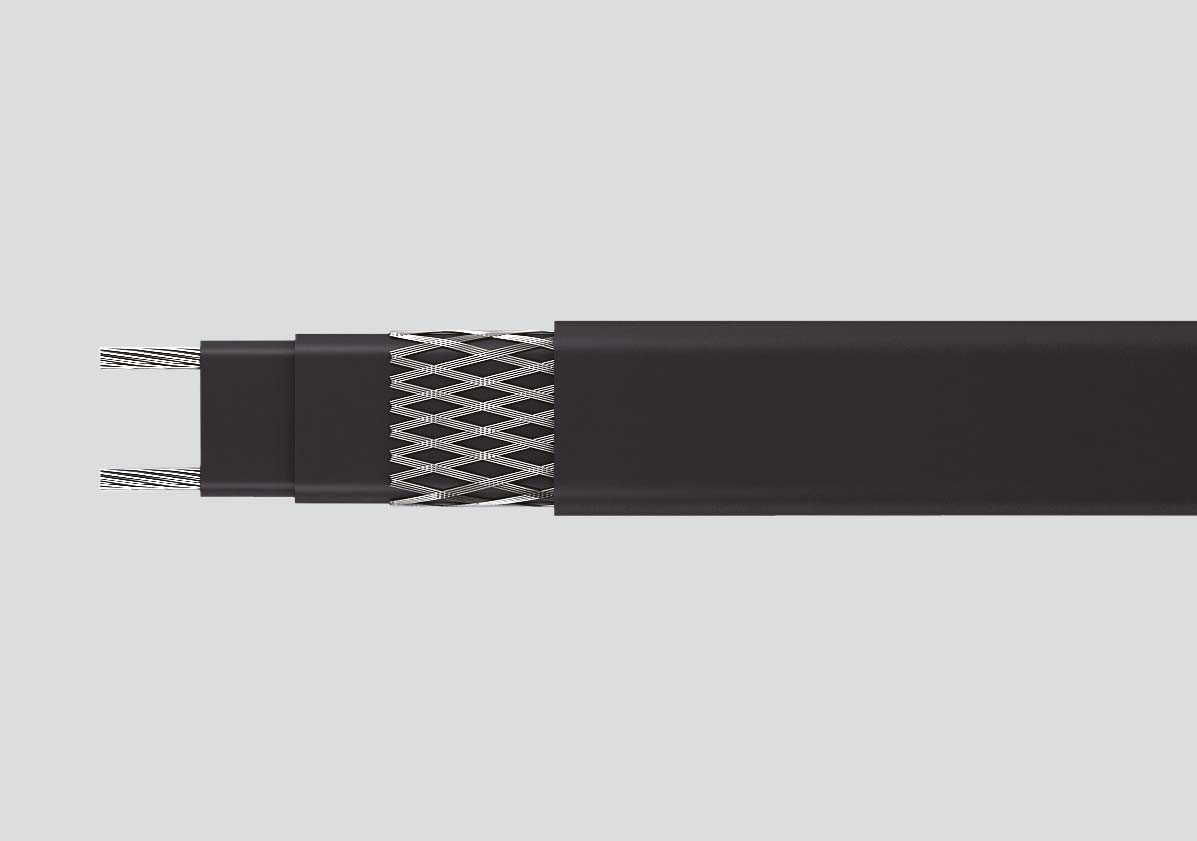

Self-Regulating Heating Cable BTXe
Application Areas
- Temperature maintenance or freeze protection of pipelines and vessels in non-hazardous and ex-hazardous areas
BTXe is an industrial-grade self-regulating heating cable (self-limiting parallel trace heater) that can be used for temperature maintenance or freeze protection of pipelines and vessels. It can be used in nonhazardous and ex-hazardous areas.
The cables comply with requirements of IEC/IEEF 60079-30-1-2017 and IEC 60079-0:2018. BTXe series is an upgrade version of BTx heating cables but with a higher maximum continuous operation temperature - up to +250 °C. The power output adjusts automatically in response to the ambient temperature.
Due to its self-regulating characteristics it will not overheat even when the cable is overlapped. This guarantees maximum safety and reliability. Installation of BTXe heating cable is quick and simple and requires no special skills or tools. Thanks to its parallel construction the heating cable can be fitted on site to exact length without any complicated design calculations.
The cables comply with requirements of IEC/IEEF 60079-30-1-2017 and IEC 60079-0:2018. BTXe series is an upgrade version of BTx heating cables but with a higher maximum continuous operation temperature - up to +250 °C. The power output adjusts automatically in response to the ambient temperature.
Due to its self-regulating characteristics it will not overheat even when the cable is overlapped. This guarantees maximum safety and reliability. Installation of BTXe heating cable is quick and simple and requires no special skills or tools. Thanks to its parallel construction the heating cable can be fitted on site to exact length without any complicated design calculations.
- 8, 15, 30, 45, 60, 75 or 100 W/m
- For extra high temperatures
- Steam purging possible
- Ex-approved solution
- Self-regulating, automatically adjusts power output in response to ambient temperature
- Fluoropolymer outer jacket
- Easy to install
- Can be cut to required length on site without any complicated design calculations
- Will not overheat even when overlapped
- Can be used in explosive environments without temperature limiter
- Full range of accessories available
- UV- and chemical-resistant
Technical Data
| Rated voltage | 230 VAC |
| Maximum continuous operating temperature (trace heater energized) | +250 °C |
| Maximum continuous exposure temperature (trace heater de-energized) | +250 °C |
| Ambient temperature range | –60 … +55 °C |
| Minimum installation temperature: Fluoropolymer outer jacket | -60 °C |
| Minimum bending radius | 25 mm |
| Maximum resistance – Braiding | 10 Ohm/km |
| Conductor cross-section | 1.25 or 2.00 mm2 |
|
Dimension: 8BTXe – 60BTXe 7 5BTXe, 100BTXe | 12.1×5.2 mm 14.5×5.9 mm |
|
Weight: 8BTXe – 60BTXe 75BTXe, 100BTXe | 153 kg/km 211 kg/km |

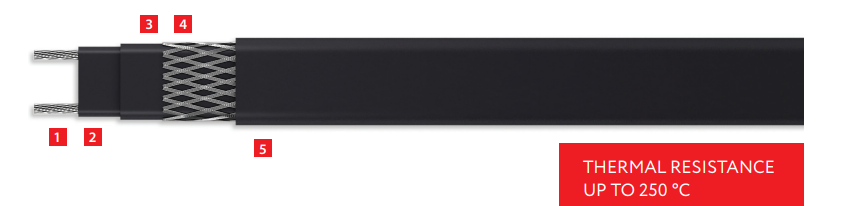

- 25 mm2 (2.00 mm2 for 75 W/m, 100 W/m) nickel-plated copper conductors
- Semi-conductive self-regulating heating matrix
- Matrix insulation
- Tinned copper braid
- Fluoropolymer outer jacket
