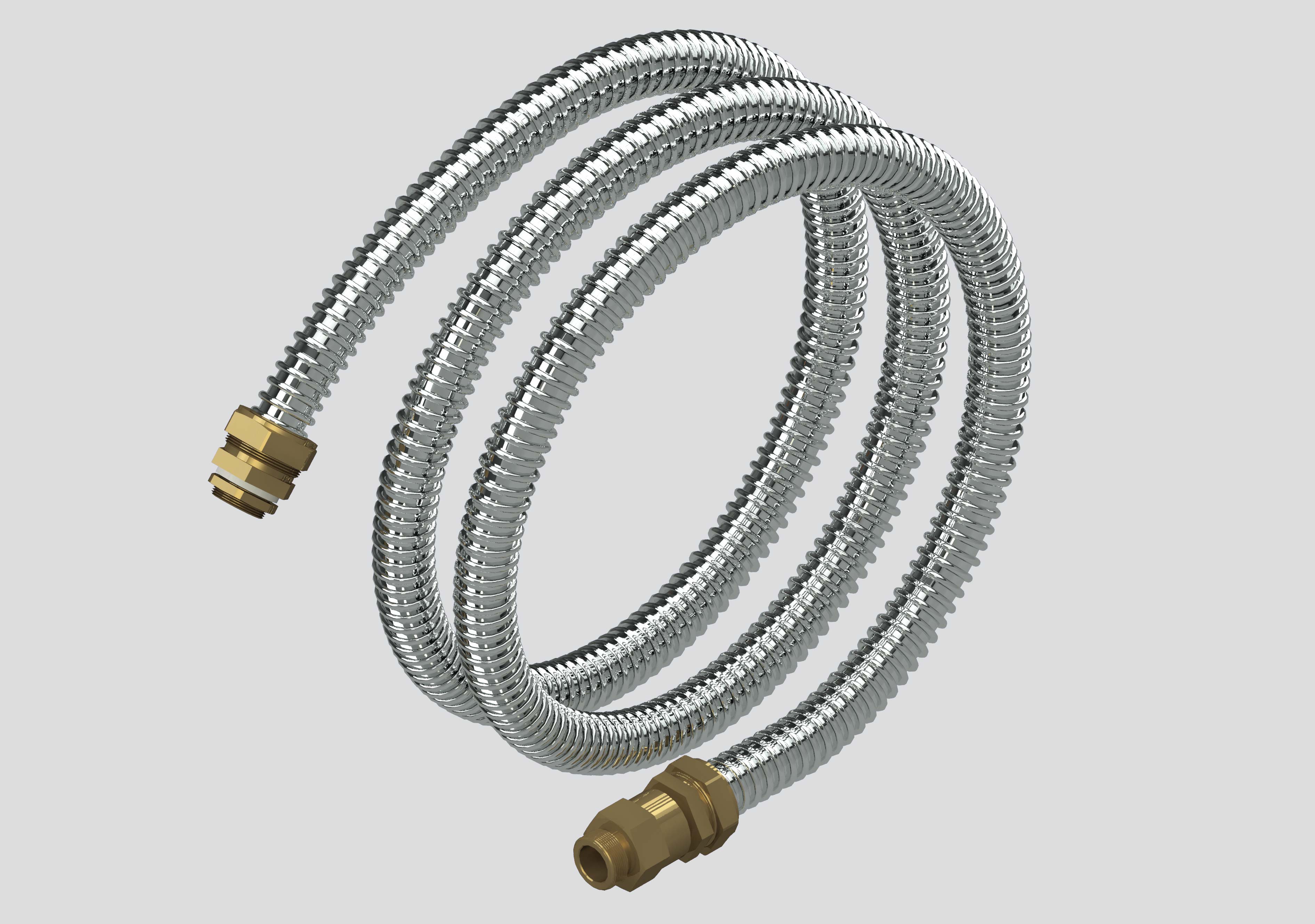

Flexible Sealed Gland FSG
Features
- High mechanical strength and chemical resistance
- Possibility of equipping with pipe coupling for connection with junction boxes, utilities pipes and for penetration of thermal insulation
- Thermal resistant version (up to +200 °С)
Application Areas
- Hazardous and normal zones — indoor and outdoor
- Surface and concealed wiring
- Aggressive environments on land, on sea platforms
Approvals
Flexible sealed gland FSG is designed to provide mechanical protection of heating, power, control cables in aggressive environmental factors: physical, chemical, ecological. Certified for usage in explosion hazardous zones.
FSG is composed of corrugated steel pipe and 2 pipe fittings. Fittings types should be chosen by the customer according to the engineering design and product type structure.
Flexible sealed gland FSG applied for surface and concealed wiring, building necessary earth circuit of extraneous conductive parts.
Supplied with length range from 0 m to 100 m or longer — according to the customer’s request.
A wide range of variants with a possibility of component selection allows to a customer to create an individual configuration depending on engineering design and working conditions.
- High mechanical strength and chemical resistance
- Possibility of equipping with pipe coupling for connection with junction boxes, utilities pipes and for penetration of thermal insulation
- Thermal resistant version (up to +200 °С)
- For all types of climates — on land, sea and offshore
- Certified for explosive hazardous zones
- Protection against aggressive environment influence (physical, chemical, ecological factors)
| Length of corrugated pipe as part of unit | from 0 to 100 m* |
|---|---|
| Dust and moisture protection rating | IP67 |
| Explosion protection marking for gas atmosphere |
1Ex e IIC T6...T3 Gb
1Ex d IIC T6...T3 Gb |
| Explosion protection marking for dust atmosphere | Ex tb IIIC T85C... T200C Db |
| Temperature group of the explosion hazard area | T6 |
| Operating ambient temperature range | −60 ... +80 °C |
| Minimum installation temperature | −60 °C |
| Climatic version | В |
* longer is possible according to a customer’s request.
- Mechanical protection unit FSG (Flexible sealed gland), as a set:
a) corrugated stainless steel pipe
b) coupling Y1
c) coupling Y2
- Heating circuit (cable)
- Junction box
- Power cable
