Series Resistance Heating Cable SNF

Series Resistance Heating Cable SNF

Features

  • Temperature resistand up to 260 °C
  • High mechanical resitance (7J impact resistance)
  • Ex-approved solution
Product Datasheet

Application Areas

  • Temperature maintenance or freeze protection in non-hazardous and ex-hazardous areas

Approvals

Series Resistance Heating Cable SNFSeries Resistance Heating Cable SNFSeries Resistance Heating Cable SNFSeries Resistance Heating Cable SNF

SNF is a flexible heating cable with a fixed specific resistance and is specifically designed for use in areas where high operating temperatures and high output power is required. By using fluoropolymer for external insulation, the heating cable is particularly suitable for use in chemically aggressive and corrosive environments. The special design of the SNF heating cable ensures high mechanical strength. Installation of the heating cables on site is quick and easy. Thanks to its small outside dimensions it can be easily attached to irregular objects such as pumps, valves and flanges.

  • Temperature resistand up to 260 °C
  • High mechanical resitance (7J impact resistance)
  • Ex-approved solution
  • Steam cleaning resistant, high chemical resistance
Technical Data
Maximum exposure temperature 260 °C
(intermittent +300 °C)
Minimum installation temperature −70 °C
Rated voltage  Up to 450/750 VAC (U0/U)
Maximum power output 40 W/m
Mechanical resistance 7J
Minimal bending radius:
for cable diameter up to 6 mm
for cable diameter above 6 mm
2.5 x diameter
6 x diameter

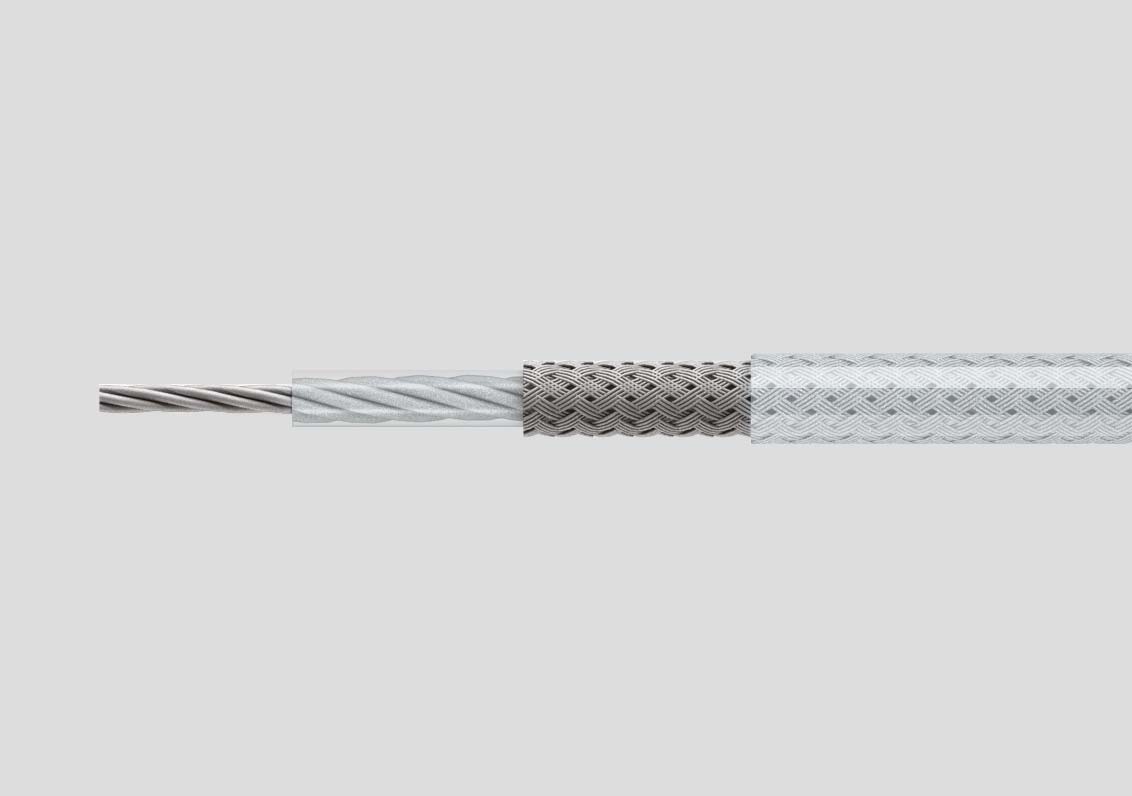

  1. Resistive heating conductor
  2. Fluoropolymer insulation
  3. Nickel-plated copper braid
  4. Fluoropolymer outer jacket
