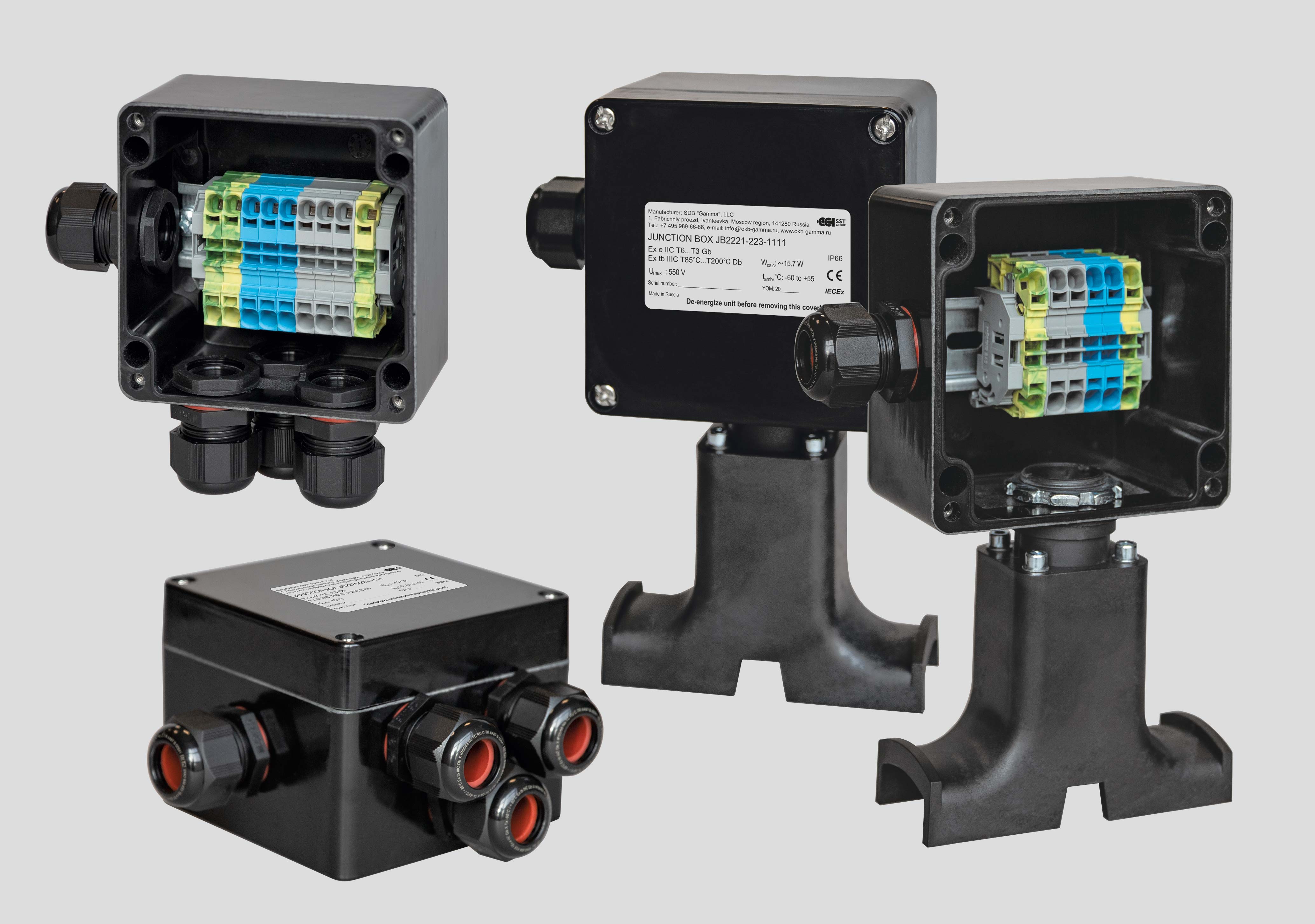

Junction Boxes for Self-Regulating Heating Cables
Features
- Efficient solution for power supply and input of self-regulating heating cables connection through thermal insulation in electrical heating systems
- Compatible with all types of self-regulating electrical heating cables
- Excludes the risk of damage to the heating cables at the connection points
Application Areas
Approved for installation in explosion hazard areas
Designed for connecting self-regulating electrical heating cables to the power network and for the branching of self-regulating heating cables*.
Box models are supplied in 2 installation variants:
- complete with a pipe installation stand UVK for direct mounting onto the surface of a pipeline or tank;
- for installation onto the wall, onto a nearby metal structure or using a bracket directly onto the pipeline (brackets supplied separately).
The enclosure design ensures moisture and dust ingress protection IP66 and high corrosion stability. Cable gland of the box is intended for connecting unarmoured power cables with a diameter of 7 to 18 mm or armored power cables with a diameter of 12 to 20 mm.
The installed terminal blocks allow the connection of multi-core or single-core wires with a cross-section of 1.5 to 10 mm2. Design options with screw or spring terminal straps are available to order.
*This junction box is compatible with self-regulating heating cables HTM, HTA, HTP, BTC, BTX, HTB, CTE.
- Efficient solution for power supply and input of self-regulating heating cables connection through thermal insulation in electrical heating systems
- Compatible with all types of self-regulating electrical heating cables
- Excludes the risk of damage to the heating cables at the connection points
- All required component parts included in the scope of supply
- Wide application range
- Quick and easy installation
- High thermal stability
- Non-corrosive
| Dust and moisture protection rating | IP66 |
|---|---|
| Explosion protection marking |
Ех еb IIC Т6...Т3 Gb Ex tb IIIC T85°C... T165°C Db |
| Temperature group of the explosion hazard area | T6 |
| Operating ambient temperature range | −60 ... +55 °С |
| Operating voltage | max 550 V |
| Operating current | max 50 A |
| Enclosure dimensions JB 2221-223 | 122×120×91.5 mm |
| Total weight (maximum) | 1.55 kg |
| Material Box / Color | Glass fiber reinforced polyester / Black |
| Material Pipe installation support / Color | Glass fiber reinforced polyester / Black |
