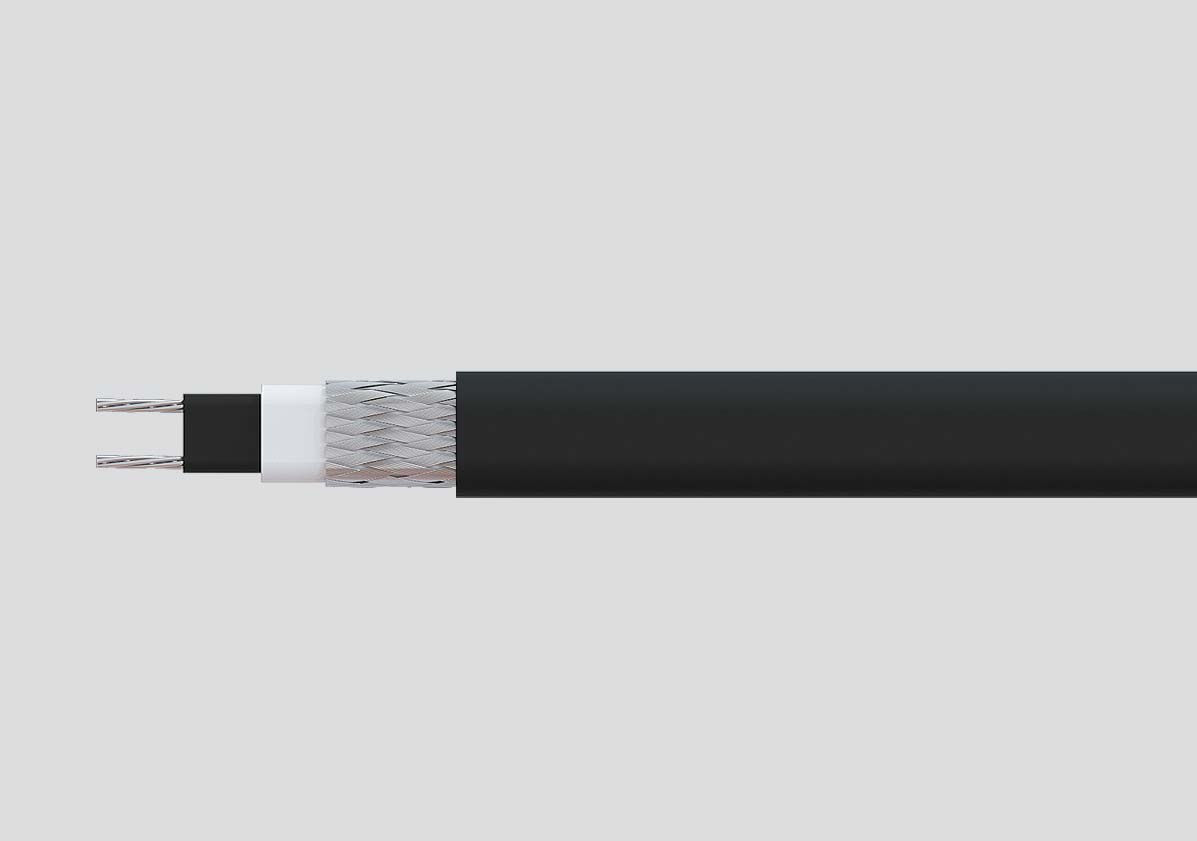

Self-Regulating Heating Cable VTM
Features
- 15 W/m
- Self-regulating, automatically adjusts power output in response to ambient temperature
- Thermoplastic overjacket
Application Areas
Freeze protection of pipelines and vessels
Approvals
VTM is an industrial grade self-regulating heating cable that can be used for freeze protection of pipelines and vessels.
The power output adjusts automatically in response to the ambient temperature.
Because of its self-regulating characteristics it will not overheat even when the cable is overlapped. This guarantees maximum safety and reliability.
The installation of VTM heating cable is quick and simple and requires no special skills or tools. Because of its parallel construction the heating cable can be fitted on site to exact length without any complicated design calculations.
Termination, splicing and power connection components are available in convenient kits.
- 15 W/m
- Self-regulating, automatically adjusts power output in response to ambient temperature
- Thermoplastic overjacket
- Easy to install
- Can be cut to required length on site without any complicated design calculations
- Will not overheat even when overlapped
- UV-resistant
- VDE zertified
Technical Data
| Rated voltage | 230 VAC |
|---|---|
| Maximum continuous operating temperature (trace heater energized) | 65 °C |
| Maximum continuous exposure temperature (trace heater de-energized) | 85 °C |
| Ambient temperature range | −60 ... +55 °C |
| Minimum installation temperature: Thermoplastic overjacket | −30 °C |
| Minimum bending radius | 25 mm |
| Maximum braiding resistance | 10 Ohm/km |
| Conductor cross-section | 0.56 mm2 |
| Dimension: Thermoplastic elastomer overjacket, braiding | 9.00×5.80 mm |
| Weight: Thermoplastic elastomer overjacket, braiding | 91 kg/km |
- 0.56 mm2 nickel-plated copper conductors
- Semi-conductive self-regulating matrix
- Matrix insulation
- Tinned copper braid
- Overjacket Thermoplastic
