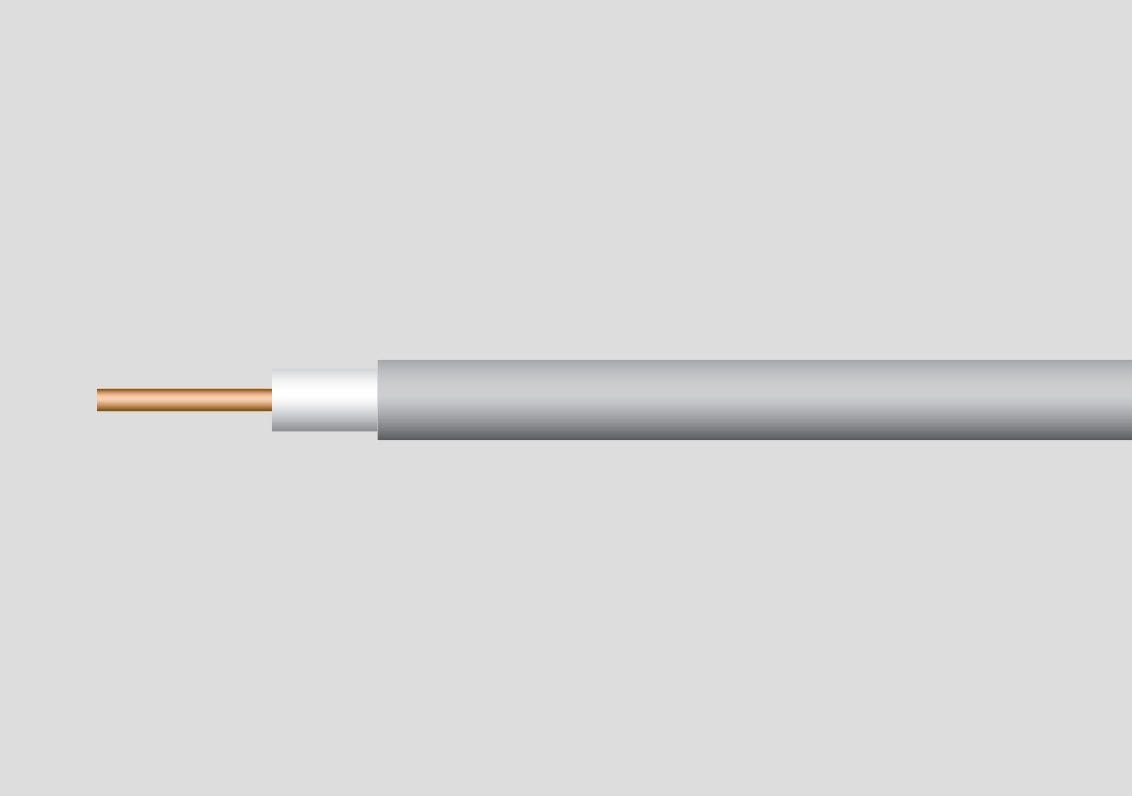

MI Heating Cable MICN

MI Heating Cable MICN

Features

  • High mechanical strength
  • Explosion- and fire-safe
  • Temperature resistance up to +400 °C
  • Power supply voltage up to 600 V
  • Delivered as cable or prefabricated heating units
  • High chemical resistance

Product Datasheet

Application Areas

Cupronickel sheathed Mineral Insulated heating cables are widely used within a range of industrial application, from oil and gas, chemicals and petroleum, power plant, gas storage and many other industrial application.

MICN heating cable is designed for heating pipelines, tanks and process equipment in the

temperature range from -60 to +400 °C, including aggressive and explosive areas.

MICN cables can be used in oil refining, chemical, pharmaceutical, food and other industries.

If the thermal output of the electric heating system is correctly calculated, the cable can be used in a broad temperature range.

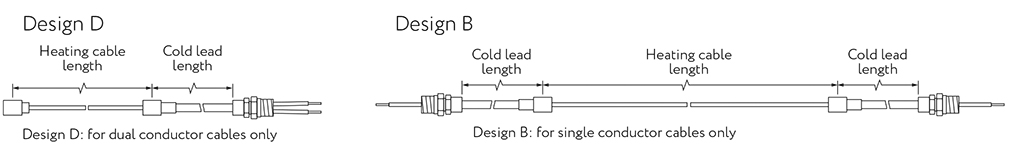

Shipped as cable or ready-made heating units. Heating unit consists of a heating cable, couplings, cold cable inserts, cable glands and flexible installation wires.

Due to the high thermal stability of the magnesium oxide insulation, the MICN cable can safely operate at ambient temperatures up to +400 °C.

MICN cable has excellent mechanical strength and high corrosion resistance, can operate in aggressive environments and hazardous areas.

MICN cable is fire-resistant and safe to operate.

  • High mechanical strength
  • Explosion- and fire-safe
  • Temperature resistance up to +400 °C
  • Power supply voltage up to 600 V
  • Delivered as cable or prefabricated heating units
  • High chemical resistance

Technical Data

Technical data

Operating voltage      Up to 600 V
     Maximum thermal resistance      +400 ℃
     Ex marking      Ex 60079-30-1 IIC T1 to T6 Gb
Ex 60079-30-1 IIIC T450°C to T85°C Db
     RESIST. at 20 ℃      4-28000 Ω/m
     Construction      1 or 2 conductors


Required cable could be chosen in the tables “Cable references” with a preliminary determination of selection parameters:

Max voltage – 300 V / 600 V

Number of conducting wires – 1 / 2

Please contact us to select and get a price offer for a ready for installation MI-heating unit

CABLE REFERENCES (SINGLE CONDUCTOR 600V)

CABLE REF DIAMETER  RESIST. at 20 ℃ NOMINAL LENGTH  NOMINAL WEIGHT
     16C4       5.9       0.004       190       161.0
     16C7      5.3       0.007       240      117.8
     16C11       4.9       0.011       290       101.7
     16C17       4.6       0.017       300       89.9
     16C25      3.7       0.025       500      58.2
     16C40      3.4       0.04       600      48.4
     16C63       3.2       0.063       650      42.0
     16K82       5.7       0.082       200      163.2
     16K122       5.2       0.122       250        130.1
     16K160     4.9       0.16       280       112.5
     16K188      4.7       0.188       300      102.3
     16K250     4.4       0.25       350       87.9
     16K312       4.2       0.312       380       78.6
     16K400      4.0       0.4       430       68.8
     16K478       3.8       0.478       470        62.8
      16K630      3.7       0.63       500       58.6
     16K1000     3.4       1      600        48.5
    16K1600       3.2       1.6       600        42.6
    16K2400       3.1       2.4       600        38.9

CABLE REFERENCES (DUAL CONDUCTOR 600V)

CABLE REF DIAMETER RESIST. at 20 ℃ NOMINAL LENGTH NOMINAL WEIGHT
     26K160       11.2       0.16       55       565.4
     26K240       9.9       0.24       70       433.4
     26K300       9.3       0.3       80       378.4
     26K380       9.0       0.38       85       348.7
     26K480      8.6       0.48       90      314.6
     26K620      8.0       0.62       105      270.0
     26K960      7.5       0.96       120       232.9
     26K1480      7.1       1.48       135       205.7
     26K1890      6.8       1.89       145      187.6
 26K2340      6.4       2.34       165       165.7
     26K3100      6.2       3.1       175       154.6
 26K4800      5.8       4.8       200      134.4

CABLE REFERENCES (DUAL CONDUCTOR 600V)


CABLE REF DIAMETER RESIST. at 20 ℃ NOMINAL LENGTH NOMINAL WEIGHT
 23K160 10.4
     0.16       60      497.6
 23K240  9.4       0.24       85      366.6
 23K300   8.4       0.3       95      315.9
 23K380       8.0       0.38       105      281.9
 23K480      7.7       0.48       115       257.0
 23K620       7.1       0.62       135      216.7
 23K960      6.5       0.96       160      178.0
     23K1480      6.0       1.48       190      149.2
     23K1890       5.7       1.89       210      133.7
 23K2340      5.5       2.34       225      123.7
 23K3100     5.3       3.1       240       114.0
 23K4800     4.9       4.8       285      96.7
