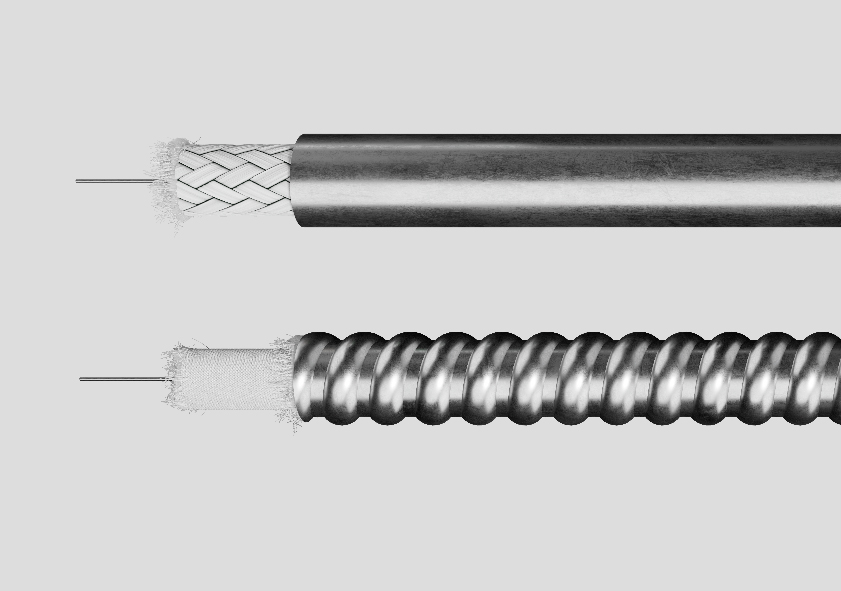

Metal Outer Jacket Fibreglass-Insulated Cable MOIC-F
Features
- Operating temperature up to +800 °C
- High mechanical resistance
- Ex-approved solution
- Can be used in chemically agressive and corrosive environments
- Wide range of controls and accessories
Application Areas
- Temperature maintenace in non-hazardous and ex-hazardous areas, extra-high thermal conditions, chemically agressive environments
High temperature metal ovejacket industrial cable for heating pipelines, vessels and process equipment.
Heating cable MOIC-F is specially designed to be an effective and reliable solution where high operating temperature has to be maintained when thermal conditions are high (for example, for heating of bitumen facilities and pipelines).
Due to high thermal stability of the fiberglass insulation,
MOIC-F cable can be used where outer jacket temperature reaches up to +800 °C.
Features Operating temperature up to +800 °C High mechanical resistance Ex-approved solution Can be used in chemically agressive and corrosive environments Wide range of controls and accessories MOIC-F cable has an excellent mechanical strength and high corrosion stability, it is fire-resistant, safe in operation and can be used in corrosive environments and explosion hazardous areas.
Correct calculation of the electric heating cable system power output makes it possible to use MOIC-F in a wide temperature range.
The cable is supplied as ready-made sections that consist of the heating cable, connection couplings, installation wires, cable entries and flexible installation wires.
Heating cable MOIC-F is specially designed to be an effective and reliable solution where high operating temperature has to be maintained when thermal conditions are high (for example, for heating of bitumen facilities and pipelines).
Due to high thermal stability of the fiberglass insulation,
MOIC-F cable can be used where outer jacket temperature reaches up to +800 °C.
Features Operating temperature up to +800 °C High mechanical resistance Ex-approved solution Can be used in chemically agressive and corrosive environments Wide range of controls and accessories MOIC-F cable has an excellent mechanical strength and high corrosion stability, it is fire-resistant, safe in operation and can be used in corrosive environments and explosion hazardous areas.
Correct calculation of the electric heating cable system power output makes it possible to use MOIC-F in a wide temperature range.
The cable is supplied as ready-made sections that consist of the heating cable, connection couplings, installation wires, cable entries and flexible installation wires.
- Operating temperature up to +800 °C
- High mechanical resistance
- Ex-approved solution
- Can be used in chemically agressive and corrosive environments
- Wide range of controls and accessories
Technical Data
| Maximum exposure temperature | for MOIC HT series | +800 °C |
| for MOIC LT series | +650 °C | |
| Minimum installation temperature | -70 °C | |
| Rated voltage | Up to 670 VAC | |
| Maximum power output | 70 W/m | |
| Mimimal bending radius | for plain outer jacket cable | 40 mm |
| for corrugated outer jacket cable | 30 mm | |
