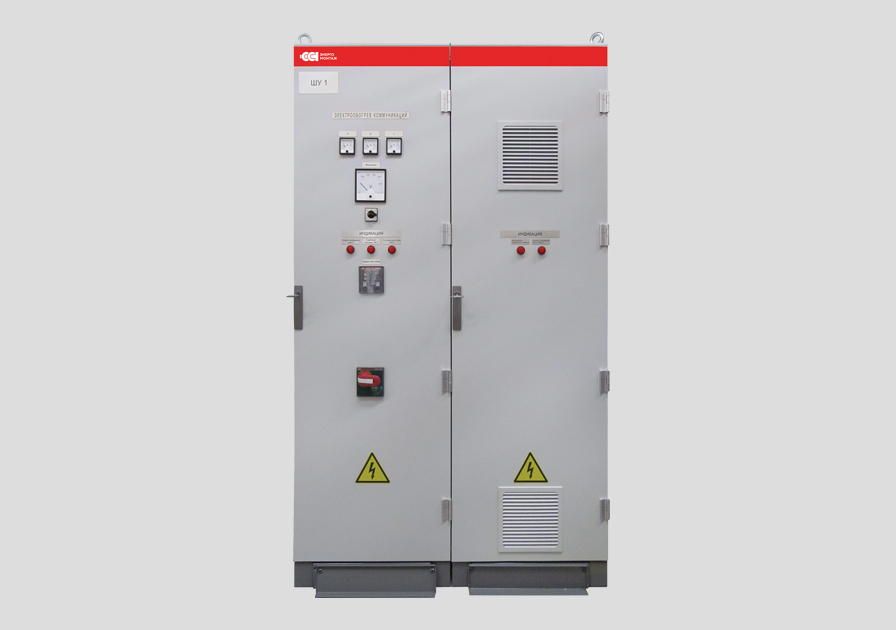

Low-voltage electric cabinets
Features
- Temperature monitoring and control of trace heating systems
- Automatic switching of backup power
- Status indication of the trace heating system
Application Areas
- process pipelines and tanks;
- mid-length pipelines (longline system);
- long pipelines (skin-effect system);
- oil wells (Stream TracerTM);
- Masterwatt gas and liquid heating;
- roofs, ramps, outdoor areas;
- sports facilities;
- soil under freezers;
- tram and railway switches.
Approvals
Automation and distribution of power in power supply and control systems of a trace heating system.
Used in various industries, energy, housing and utilities, transportation, construction, etc.
- Temperature monitoring and control of trace heating systems
- Automatic switching of backup power
- Status indication of the trace heating system
- Protection of the equipment against short- circuit, insulation damage (monitoring of leakage currents), high / low supply voltage
- Monitoring and indication of overheating/ underheating of the heated system
- Load cascading to reduce starting currents
- Integration into the customer’s APCS
Technical Data
| Rated operational voltage, Un | up to 1000 V AC or 1500 V DC |
|---|---|
| Rated frequency, f | 50 Hz |
| Earthing system | TN-S; TN-C; TN-C-S |
| Protection class | IP31-IP65 |
| Climatic version | UHL1-UHL4 |
| Structural design | floor-mounted / wall-mounted |
